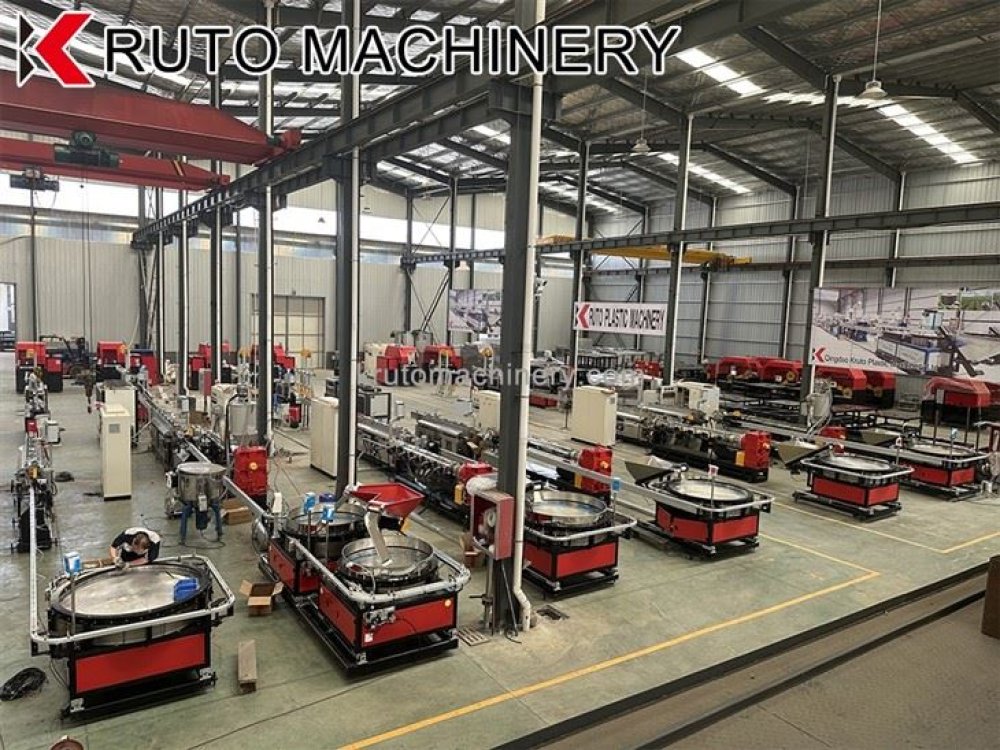

Flat Drip Irrigation Belt Production Line

Hot Tags: flat drip irrigation belt production line, China flat drip irrigation belt production line manufacturers, suppliers, PVC Roll Soft Waterproof Flooring production line, Plastic Geomembrane Sheet Production Machine, Plastic Geomembrane Line, Pe Spiral Pipe Extruding Extruders Machinery, Geomembrane Production Line, HDPE Geomembrane Extrusion Line

1. Dry Hoppers 1set

50KG for drying raw materials

Automatic Loading Machines 1set

Floor-standing

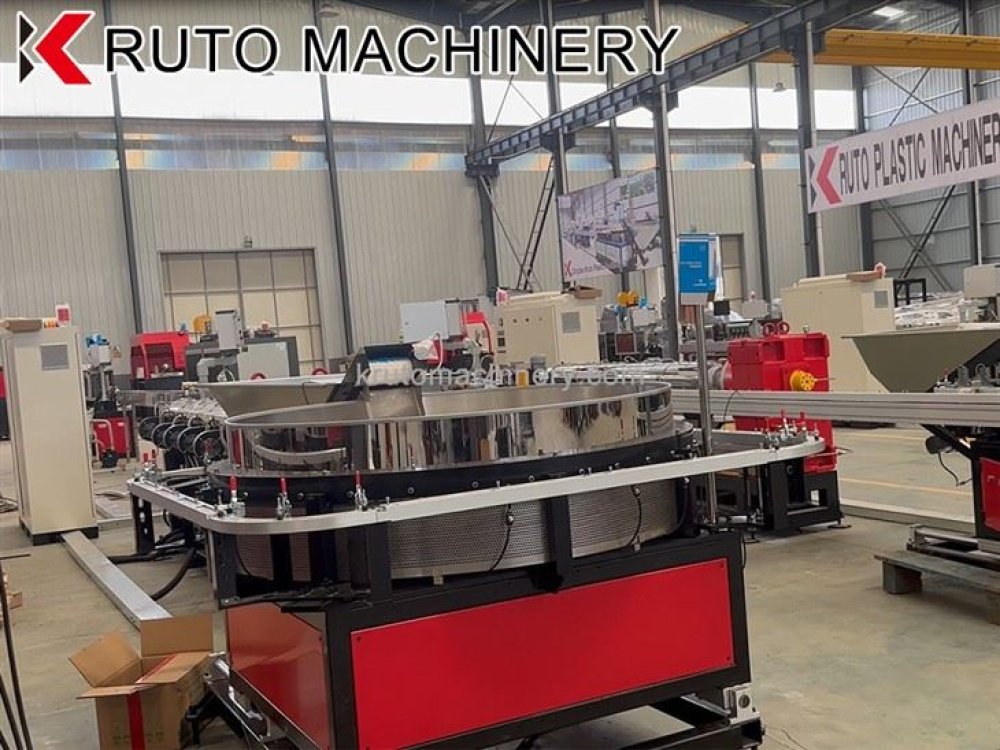

3. The dripper is screened and conveyed 1 set of embedded units.

3.1 Dropper identification sieve 2 sets

diameter 1280 *1 mm

3.2 Identification method: centrifugal plus pneumatic identification, frequency conversion control

3.3 Recognition speed ＜ 2000 drips (23cm).

3.4 With storage disk

4. KSJ-75/38 Single Screw Extruder 1 set

4.1 75/38 extruder set, maximum extrusion capacity: 180kg/h

(Can adapt to the production of recycled materials)

4.2 Motor: 80kw Huichuan servo motor + Huichuan servo controller

4.3 With pressure transmitter

4.4 1 set of semi-automatic hydraulic screen changers (130)

4.5 Reducer: Guomao (Model 225)

Reduction ratio: 16:1

KSJ-25/25 Single Screw Extruder 1 set

Extruder for marks

Motor Power 1.5kw

6. Machine Head Mold 1 set

6.1 Pipe diameter: φ16mm, φ20mm; Pipe wall thickness: 0.8-1.5mm

6.2 Heating power: 10kw, ceramic heating coil plus stainless steel heating coil

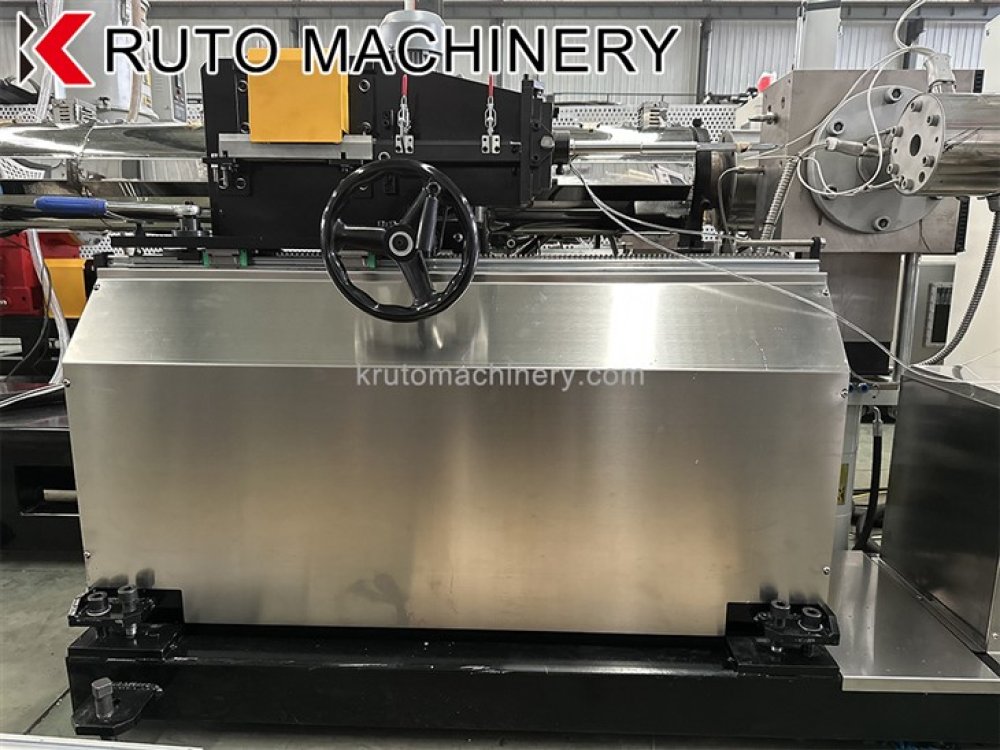

7. 304 Stainless Steel Vacuum Sizing Cooling Water Tank 1 set (Length 4 meters)

7.1 Including 1 set of dripping head paste sizing device

7.2 Vacuum generation control system: 1 set of vacuum fan;

7.3 1 set of pinhole rotten hole detection devices

7.4 1 set of sand and gravel filter

304 Stainless Steel Cooling Tank 2 sets (4 meters*2)

8.1 pipe diameter: φ16mm φ20mm

8.2 Total length of tank: 4m*2

8.3 stainless steel 304 material, height adjustable.

8.4 A set of broken pipe detection devices.

8.5 High pressure blow dryer 2sets

9. Tractor 1 set

9.1 Dual synchronous belt traction, pneumatic clamping

9.2 Panasonic servo motor control, motor power 2.0kw

9.3 Traction speed: 0-300m/min

10. Punching Machine 4 sets

10.1 Mainly used for automatic punching of eyedropper belts

10.2 punching machine power: 0.4kw, 4 sets of servo motors, precision punching

10.3 punching speed: < 3000pcs/min

10.4 2 sets of vacuum scrap suction device

10.5 Provide 1 sets of high-speed vision systems

11. Double-Station Automatic Winding Machine 1 set

11.1 For automatic winding of molded pipe belts.

11.2 winding power:, 1.5kw*2 service motor control (stable winding)

11.3 With torque limit and protection function

12. Chillers 1 set

25P chillers (air cooled)

Laser Printer 1 set

Work Distance 169±2mm (vary from different sizes and conditions )

Marking Speed high speed ≤12000mm/s

Height of the Character 0.5mm-100mm

Output Power 50w

Wave Length of the Laser 1064nm

Pulse Repetition Frequency 60kHz

14. Automatic Bar code Labelling Printer

Can print text, time, number, bar code...

15. Automatic Control System 1 set

15.1 The main control host Huichuan servo 60KW, Siemens PLC, Weilun touch screen 3 sets, OMRON thermostat, Schneider contactors, relays. Servo adopts Panasonic brand,

15.2 The alarm function of the production line configuration: screen change pressure prompt, pinhole rotten hole detection, missing drip alarm, broken pipe detection., rm.

15.3 One-click pipe induction function, broken tube automatic separation function.

15.4 Punching dual screen display

16. Sand Filter

Purification of water quality

17. Vacuum Suction Pump 1 set

Be able to suck out the debris on the pipe after punching in time.

18. With Storage Device 1 set

Can effectively assist the winding and rewinding to work well.
