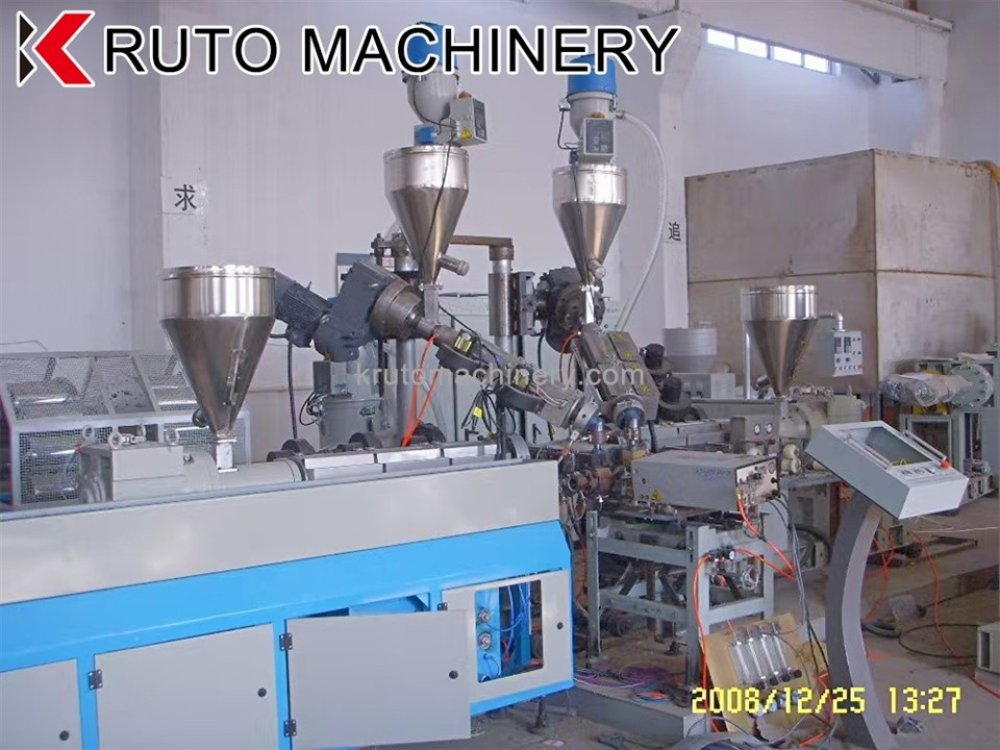

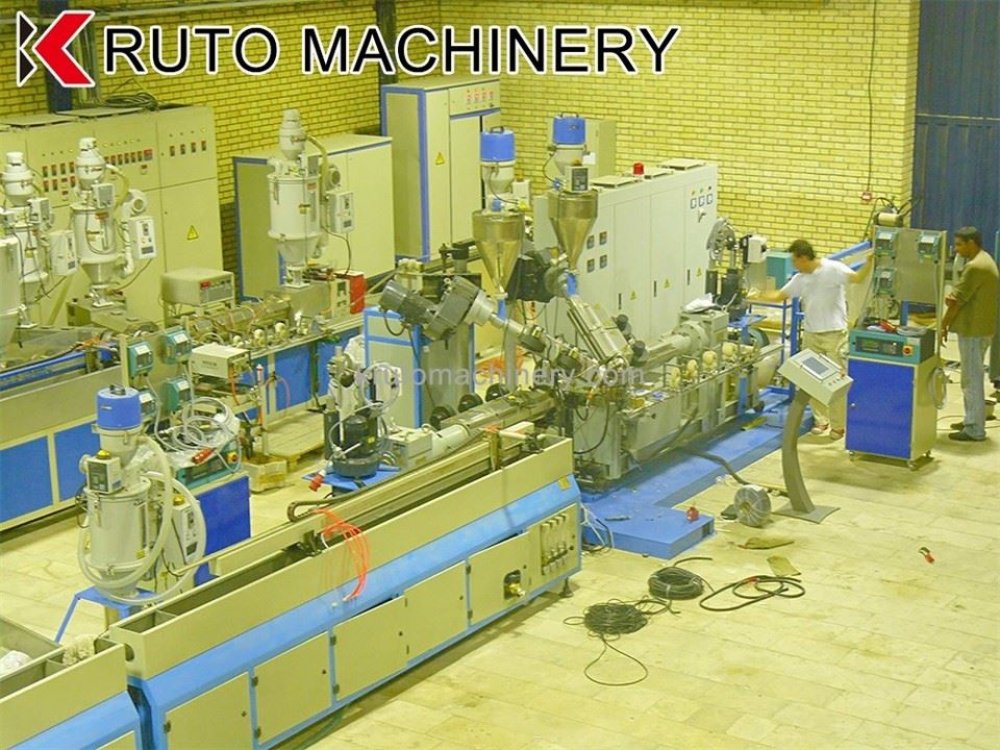

PEX(PE-RT)PPR-AL-PEX(PE-RT)PPR COMPOSITE PIPE HIGH SPEED PRODUCTION LINE
5 layers of PEX-GLUE-AL-GLUE-PEX composite pipe is adopted the Europe co-extrusion technology. The Aluminum Tube seaming welding way is over-lap ultrasonic welder American Brand of Amtech , which ensure the welding speed at 25m/min. Extruders are especial designed and manufactured to meet with the PEX-b raw material . British brand Beta -Two direction way pipe diameter detector & HMI programmed PLC control system all are ensure to extrude the high quality PEX(PE-RT)-AL-PEX(PE-RT)COMPOSITE PIPE
Model | Pipe Dia.Range (mm) | Main Extruder Model | Mark-line Extruder Model | Extrusion Speed (m/min)
| Max.Output (kg/h) | Total Installed Power( Kw)
| Overall Dimension LXWXH
|
KLSG-32 | Ø16-Ø32 | KSJ-50X33 KSJ-50X33 | FSJ-25X25 FSJ-25X25 | 2-20 | 80 | 120 | 30X3X3.2 |
KLSG-63 | Ø 32- Ø 63 | KSJ-65X33 KSJ-65X33 | FSJ-30X25 FSJ-30X25 | 0.4-4 | 150 | 160 | 32X3X3.2 |
